Multiway Jewel Three Disk Case

Releases (27)

The Multiway Jewel Three Disk case is a deeper variant of the multiway jewel family, required to accommodate a third game disc. The additional disc capacity is reflected in a more complex internal tray arrangement. This case was first used by the game D released in early 1996 requiring three disks to support the large amount of FMV content the game contained.

Physical Characteristics

Dimensions

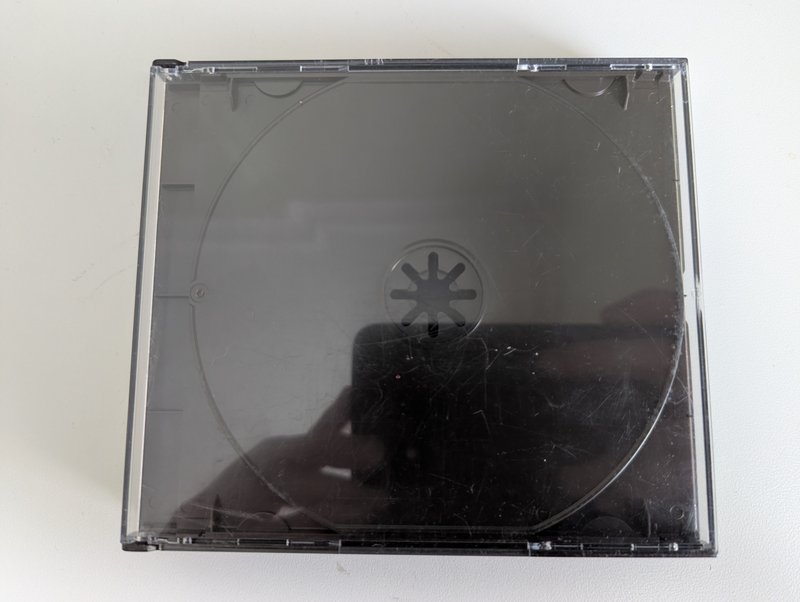

Same footprint as a standard jewel case - approximately 142mm × 125mm Depth/spine width increases to slightly larger than two standard CD jewel cases. A standard single jewel case is around 10mm deep; these cases are roughly 25mm.

Construction

Clear polycarbonate plastic (same material as a standard jewel case) Front and back covers are hinged in the same way as a standard case The internal tray mechanism is replaced or stacked to accommodate additional discs - each disc typically sits in a separate moulded tray or hub, layered within the case

Internal Layout

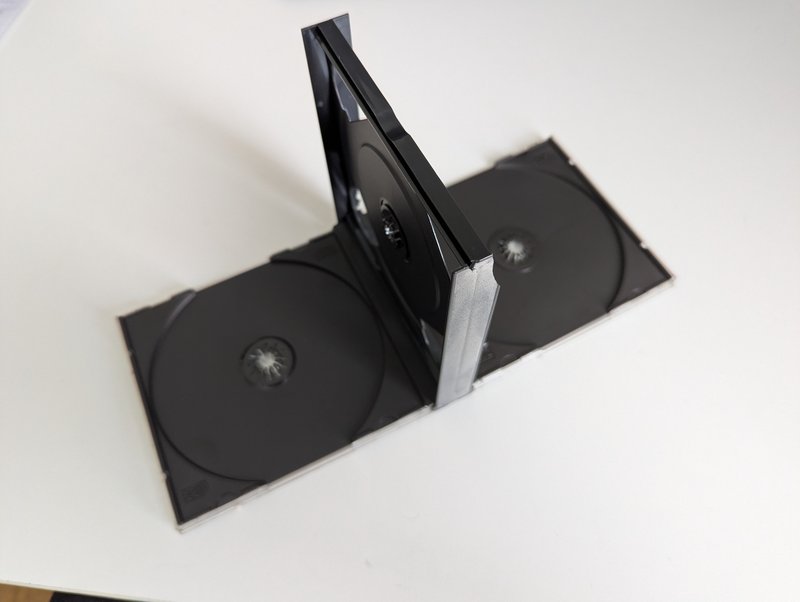

Individual disc hubs (centre spindles) are moulded into stacked trays Discs may be accessed by lifting/folding each tray, similar to a book, or by a back-to-back arrangement depending on the manufacturer Booklet slot runs along the inside front cover or within the rear cover - allowing for two manuals to be stored within the case. Back inlay sits in the rear cover as normal

Spine

Wider than a standard case, so the spine label is correspondingly taller Still carries game title and disc count information

Interior Design

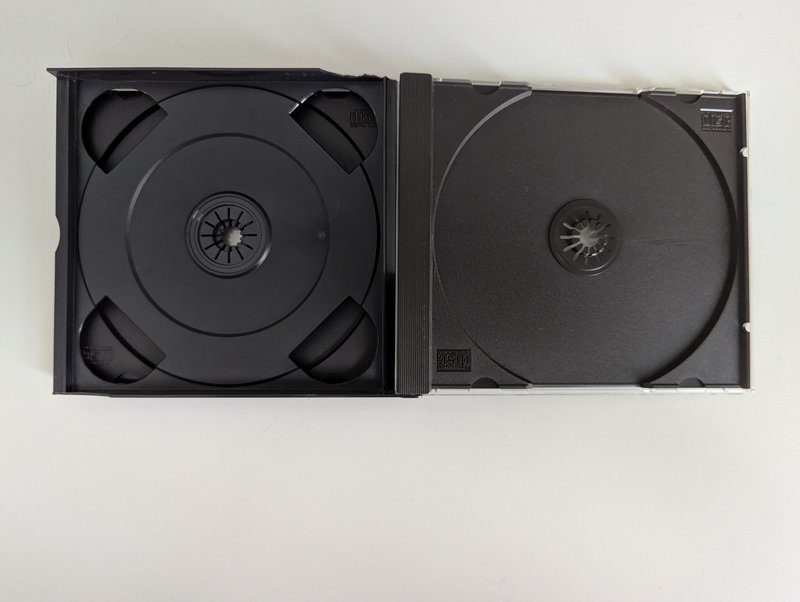

The two-leaf structure is retained. The third disc is accommodated by an additional CD hub spindle in the centre of the case.
